ASR-5200E

High-availability Disk Array Solution for Mission-critical Service with Zero Down Time

Main Features

3-year Warranty, with Advanced RMA Service
State-of-the-art Data Service Functions: Thin Provisioning, FlashCopy, Easy Tier and Remote Mirror
Default BBU+Flash Module for Cache Backup
Additional Host Options: FC 8G/iSCSI 10G/iSCSI 1G
Max 60 x 3.5" / 120 x 2.5" SATA/SAS 6Gb/s drives
Default 2 x iSCSI 1Gb/s + 3 x SAS 6Gb/s per Controller
2U12 (LFF)/2U24 (SFF), Two High-density Form Factors
Redundant Dual Controller Configuration
數(shù)據(jù)表(PDF) 技術(shù)資料下載

規(guī)格表

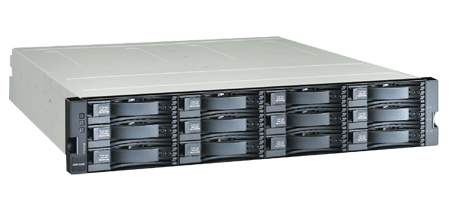

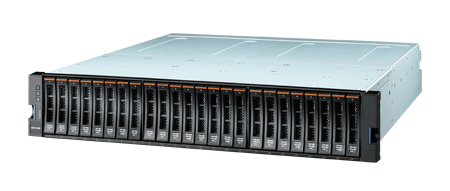

		ASR-5200E-12A1E	ASR-5200E-24A1E
Form Factor	Form Factor	2U 12-Bay	4U 24-Bay
Disk Drive Bay	3.5"/2.5" Front-Accessible	12	24
Power Supply	Input Range	AC 100 V ~ 240 V	AC 100 V ~ 240 V
Physical Characteristics	Dimensions (W x H x D)	556 x 87 x 483 (mm)	556 x 87 x 483 (mm)
Environment	Operational Temperature	0 ~ 40° C (32 ~ 104° F)	0 ~ 40° C (32 ~ 104° F)
Miscellaneous	LED Indicators	Power, Identification, Fault LED	Power, Identification, Fault LED
Value-added	JBOD Expansion Max.	120 HDDs	240 HDDs
